M8540 Standard ROPS & CAB

Agricultural Machinery
KUBOTA
TRACTORS

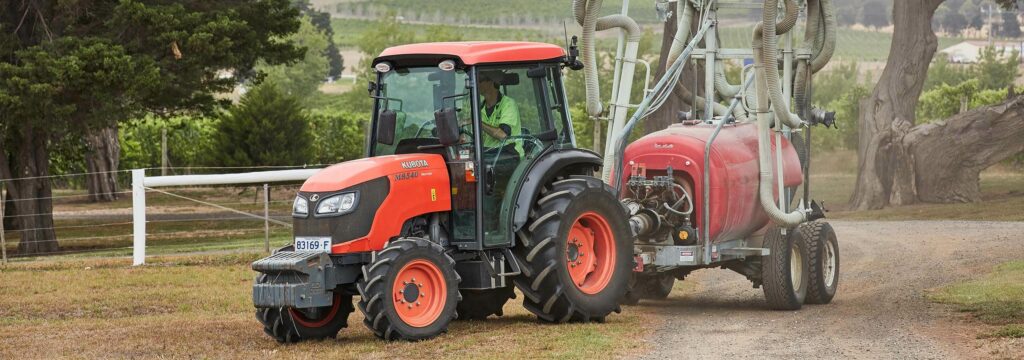

Simple to operate yet incredibly powerful, the economical M Series tractor range is ideal for a wide variety of applications from property maintenance to commercial landscaping and farming applications. Kubota’s M8540 utility tractors offer powerful performance with a 85HP, 4-cylinder turbo charged, E-CDIS engine. Designed for heavy duty work and equipped with hydraulic shuttle, Creep Speed and Auto-hitch for a more productive and practical operation. Available in ROPS or cabin models. The cabin models features rounded glass for increased CAB space and greater visibility. Available with a variety of attachments.

Product Features

Kubota’s revolutionary new centre direct injection system (E-CDIS) engines offer more durability, power and fuel efficiency. For heavy-duty work such as ploughing, hay work and heavy trailer applications, the M8540 is equipped with an F18/R18 transmission. This transmission features six speeds of the main shift and high/low/creep ranges. Standard with a 540/540E hydraulic independent PTO, to increase productivity. Category I & II 3-point hitches provide fast and simple attachment of rear-mounted implements. Two external hydraulic cylinders provide equal lifting force and smooth transfer of hydraulic power for easy operation. M-Series hydraulic pumps are located on the side case instead of on the engine, shortening the oil flow path and increasing efficiency. Shifting between forward and reverse is seamless and smooth with Kubota’s new and improved hydraulic shuttle. A column-mounted lever with left-hand operation makes shifting simple. Bevel-gear front axle provides the M40 series with better all around maneuvrability, especially for jobs in tight spaces. To decrease operator effort and increase overall tractor longevity, the Kubota M8540 comes standard with Hydraulic Wet Disc Brakes. These brakes require less pedal effort and retain high performance efficiency even after repeated heavy-duty work.

Engine

All of the four M-Series tractors are equipped with Kubota’s revolutionary center-direct injection system (E-CDIS) engine. The E-CDIS engines offer a rare combination of more power, durability and better fuel efficiency, so you’ll be able to get the job done quicker and more efficiently while minding your budget. These engines also boast lower noise levels, which equates to less stress and fatigue after long work days. Finally, all of Kubota’s E-CDIS engines comply with EPA Tier II emission standards, so you can rest assured you’re running a cleaner engine. V3800DI-T comes standard on M8540 tractors. This hearty diesel engine employs a reliable 4-valve, center-direct injection system to achieve greater towing power. Combine this with the V3800DI-T’s turbo charger and you have all the power you’ll ever need, especially in the low rpm range, to perform heavy-duty tasks and during operations requiring sure-footed traction. The engines of the Kubota M-Series tractors comply with Tier II EPA emission regulations.

Transmission

For heavy-duty work such as ploughing, hay work and heavy trailer applications the hydraulic-shuttle, the M8540 can be equipped with an F18/R18 transmission including creep speed. This transmission features six speeds of the main shift and a high/low/creep range giving it a total of 18 Forward and 18 Reverse speeds. Shifting between forward and reverse is seamless and smooth with our new and improved M-Series Hydraulic Shuttle. A column-mounted lever with left-hand operation makes shifting easy. And when attaching implements, our improved inching feature is easy to perform, giving you the same feel as a half-clutch operation. The standard Limited Slip Differential helps you maintain a stable travel speed should the drive wheel on either side of the tractor slip.

Transmission

For heavy-duty work such as ploughing, hay work and heavy trailer applications the hydraulic-shuttle, the M8540 can be equipped with an F18/R18 transmission including creep speed. This transmission features six speeds of the main shift and a high/low/creep range giving it a total of 18 Forward and 18 Reverse speeds. Shifting between forward and reverse is seamless and smooth with our new and improved M-Series Hydraulic Shuttle. A column-mounted lever with left-hand operation makes shifting easy. And when attaching implements, our improved inching feature is easy to perform, giving you the same feel as a half-clutch operation. The standard Limited Slip Differential helps you maintain a stable travel speed should the drive wheel on either side of the tractor slip.

Hydraulics & PTO

The hydraulics on the M-Series are state-of-the- art. External hydraulic cylinders improve the lifting power and offer easier maintenance. The M8540 offers a large pump capacity of 64.3 l/ m. As a result, the front loader cycle times are short, increasing productivity and facilitating operation. Pulling, lifting, cutting or baling; the standard 540/540E rpm hydraulic independent PTO (1000 rpm is optional on the M8540) of the Kubota M-Series tractors makes your toughest work easier. Self- modulation engagement with a light touch means implements like a rear cutter engage smoothly. The PTO brake engages when the clutch is shut off and securely holds the PTO shaft. The PTO clutch can be hydraulically engaged and disengaged on the go. This means mowing, operating hay equipment or spraying orchards are all made more efficient. The Category II 3-point hitches provide fast and simple attachment of rear-mounted implements. Capacity on the M8540 it is 3200kg.



Details

Type:
Equipment Showroom
Showroom Range:
Agricultural Machinery
Showroom Categories:
Tractors
Showroom Sub-Categories:
TRACTORS
Our Brands:
KUBOTA
