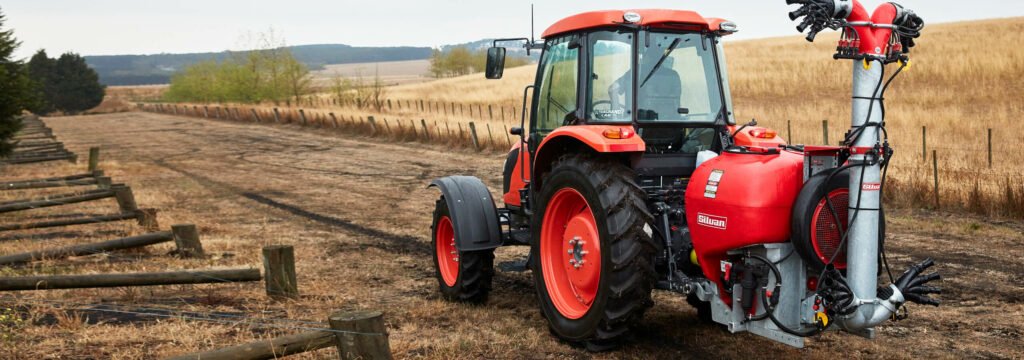

M7040 ROPS & CAB

Agricultural Machinery
KUBOTA
TRACTORS
M7040DH / M7040DHC
Simple to operate yet incredibly powerful, the economical M Series tractor range is ideal for a wide variety of applications from property maintenance to commercial landscaping and farming applications. Kubota’s M7040 utility tractors offer powerful performance with a 68HP, 4-cylinder turbo charged, E-CDIS engine. Designed for heavy duty work and equipped with hydraulic shuttle, Creep Speed and Auto-hitch for a more productive and practical operation. Available in ROPS or cabin models. The cabin models features rounded glass for increased CAB space and greater visibility. Available with a variety of attachments. When operating a tractor, space comes at a premium. The M-Series flat deck neatly repositions most of the operational levers, including main shift and range lever, auxiliary control lever, hand-throttle, position draft control lever and PTO clutch lever, to the right of the seat. This offers the operator more legroom and far more comfort.

Product Features

The Kubota M7040DHC features a 68HP E-CDIS engine, offering more durability, power and fuel efficiency than other models in its class. The CAB model is equipped with hydraulic shuttle shift to make forward and reverse maneuvers quick and smooth. Standard specification includes Creep Speed and Autohitch plus a fully air conditioned cab for outstanding operator comfort. The standard Limited Slip Differential helps you maintain a stable travel speed should the drive wheel on either side of the tractor slip. Category I & II 3-point hitches provide fast and simple attachment of rear-mounted implements. Two external hydraulic cylinders provide equal lifting force and smooth transfer of hydraulic power for easy operation. M-Series hydraulic pumps are located on the side case instead of on the engine, shortening the oil flow path and increasing efficiency.Shifting between forward and reverse is seamless and smooth with Kubota’s new and improved hydraulic shuttle. A column-mounted lever with left-hand operation makes shifting simple. Bevel-gear front axle provides the M40 series with better all around manoeuvrability, especially for jobs in tight spaces. Reclining, weight-adjusted seats come standard, designed to absorb shock and significantly reduce operator fatigue. Digital LED panel makes viewing vital functions on this tractor clear and easy.

Engine

The V3307-DI has been specially designed and built for M-Series tractors M6040 and M7040. The V3307-DI is a compact but powerful engine, offering an increased engine displacement of 3.3L. The M-Series tractors equipped with this high performance powerhouse provides high torque rise giving them the ability to take on even the most heavy-duty applications. All of the four M-Series tractors are equipped with Kubota’s revolutionary center-direct injection system (E-CDIS) engine. The E-CDIS engines offer a rare combination of more power, durability and better fuel efficiency, so you’ll be able to get the job done quicker and more efficiently while minding your budget. These engines also boast lower noise levels, which equates to less stress and fatigue after long work days. Finally, all of Kubota’s E-CDIS engines comply with EPA Tier II emission standards, so you can rest assured you’re running a cleaner engine. The engines of the Kubota M-Series tractors comply with Tier II EPA emission regulations.

Transmission

Synchronised four speeds of the main shift and a high/low range supply tractors with 12 Forward and 12 Reverse speeds, including 4 creep speed. Shifting between forward and reverse is seamless and smooth with our new and improved M-Series Hydraulic Shuttle. A column-mounted lever with left-hand operation makes shifting easy. And when attaching implements, our improved inching feature is easy to perform, giving you the same feel as a half-clutch operation. Limited Slip Differential on the front helps you maintain a stable travel speed should the drive wheel on either side of the tractor slip. A standard feature on the M7040 Limited Slip Differential is perfect when reliable traction is essential.

In The Driver’s Seat

The M7040DHC cabin model has a pantograph style front wiper to increase visibility and operator safety on rainy days. The unique design of this wiper gives it a wider coverage area. The rounded cab glass of our M-Series tractors increases the length of the cab by 5 cm and the width by 16 cm, when compared to traditional cabins. This provides the operator with improved visibility and a more spacious feel—ideal for long days inside the cab. The arched beam in the front of the cab and relocated A/C components allowed M-Series designers to extend the height of the roof. This feature not only increases headroom, it also increases overall visibility, especially while using the loader. Reclining, weight-adjusted seats come standard, designed to absorb shock and significantly reduce operator fatigue. The Easy-Step tilt steering wheel of the cab gets out of the way when the operator is dismounting the tractor. Just step on a pedal and raise the steering wheel to its original position. The heating and cooling unit is now located under the seat. The overall air circulation in the cab is optimised by the cab’s rounded glass as well as by placing the air outlets in the dash tower to keep you cooler on hot summer days and warmer on cold mornings, for year around environment control.

Hydraulics & PTO

The hydraulics on the M-Series are state-of-the- art. External hydraulic cylinders improve the lifting power and offer easier maintenance. The M7040 offers a large pump capacity of 41.6 l/ m. As a result, the front loader cycle times are short, increasing productivity and facilitating operation. Self- modulation engagement with a light touch means implements like a rear cutter engage smoothly. The PTO brake engages when the clutch is shut off and securely holds the PTO shaft. The PTO clutch can be hydraulically engaged and disengaged on the go. This means mowing, operating hay equipment or spraying orchards are all made more efficient. The Category II 3-point hitches provide fast and simple attachment of rear-mounted implements. Capacity on the M7040 it is 1500kg.
