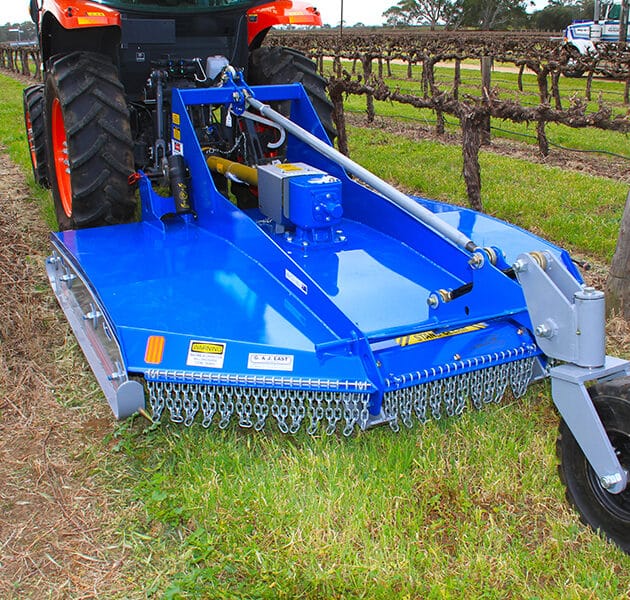

Taper Back Vineyard & Orchard Mower

Agricultural Machinery
Orchard Mowers
Vineyard Mowers

Fitted with a dual Mitt Throw blade system, the 3PL Taper Back mower has high clearance mulch throw on the right side and a fixed skid on the left. Its tapered back design and rear wheel kit allow for a tighter turning arc. The fully welded 6mm folded easy clean deck, with 6mm side plates, is fitted with 300mm 3PL mounts offset to the right, as well as the standard centre mounts. With a Comer T80 Series heavy duty PTO shaft and 4 Plate clutch with over-run, this mower is suitable for compatible 70 to 120HP tractors.

The 5′ 3″ Taper back is suited to inter-row vineyard mowing, while the larger 7′ model can be used comfortably in orchards.


  • Rigid plate headstock connected to under body structure supports
  • Rear wheel kit allowing for tighter turning
  • High clearance mulch throw right hand side
  • Comer Italian gearbox and PTO


ModelGPNRotor ConfigurationCutting WidthApproximate Weight
TB 5′ 3″ (Vineyard)236956Single Rotor1.6m595kg
TB 7′ (Orchard)234255Single Rotor2.1m900kg
