Linkage Arm Scrapers

HW Maxi Linkage Arm Scraper

The HW Maxi Linkage Arm Scrapers offer superior earthmoving capabilities for tractors ranging from 80hp to 400hp. These scrapers feature hydraulic controls, generous load capacities, and efficient designs, making them ideal for agriculture, landscaping, and construction tasks.

Benefits:

Enhanced Efficiency: Quick load times and wide cutting widths.
Versatility: Suitable for various land management applications.
Durability: Built with high-quality materials for long-lasting use.
Precision Control: Hydraulic rams for accurate cutting, loading, and dumping.
Increased Productivity: Large capacity models for faster, more efficient operations.

Key Features

High Load Capacities
Suitable for tractors ranging from 80hp to 400hp, accommodating various project sizes.
Durable Construction
Built with high-quality materials to withstand tough conditions and ensure longevity.
Easy Maintenance
Features designed for straightforward upkeep to minimize downtime and maximize productivity.
Versatile Applications
Ideal for agriculture, landscaping, and construction tasks, offering flexibility for different land management needs.

Linkage Arm Scraper Model Specifications

Explore our diverse range of Linkage Arm Scraper models.

M1200M1000M800M600M500M400M300M1200

The M1200 Model

The M1200 Linkage Arm Scraper, the largest in its category, boasts a formidable 12m³ load capacity and a wide 3.6m cut. It is perfectly suited for extensive commercial farming and contracting tasks, requiring at least 350hp to operate efficiently.

Model: M1200
Capacity: 12m³
Recommended Horsepower: 350hp
Overall Width: 3600mm
Overall Height: 1800mm
Overall Length: 7500mm
Standard Cutting Width: 3600mm (11.8ft)
Machine Weight: 6000kg
Tyres: 750/50-26.5
Hydro Banks Required: 3 sets
Rams: 3
Hitch Style: Linkage Arm

M1000

The M1000 Model

The M1000 tractor scraper requires a tractor that is 130hp or more to pull it, due to its impressive 10m3 load capacity. This huge capacity means it is predominantly intended for industrial use, large scale contracting and farm work.

Model: M1000
Capacity: 10m³
Recommended Horsepower: 250hp
Overall Width: 3000mm
Overall Height: 1800mm
Overall Length: 7000mm
Standard Cutting Width: 3000mm (9.8ft)
Machine Weight: 5000kg
Tyres: 700/50-26.5
Hydro Banks Required: 3 sets
Rams: 3
Hitch Style: Linkage Arm

M800

The M800 Model

The M800 Scraper boasts a huge 8m3 load capacity, and with its hydraulic ram, this scraper has proven to be ideal for commercial farm work and contracting, as well as large industrial use. This tractor scraper makes earth moving a breeze, collecting soil efficiently and quickly.

Model: M800
Capacity: 8m³
Recommended Horsepower: 200hp
Overall Width: 2650mm
Overall Height: 1800mm
Overall Length: 5900mm
Standard Cutting Width: 2650mm (8.6ft)
Machine Weight: 3500kg
Tyres: 550/60-22.5
Hydro Banks Required: 3 sets
Rams: 3
Hitch Style: Linkage Arm

M600

The M600 Model

A large 6m3 load capacity makes the M600 scraper ideal for larger land management tasks. Big commercial earth moving companies will use scrapers that have load capacities this large, or larger, meaning it is a popular piece of equipment for industrial use.

Model: M600
Capacity: 6m³
Recommended Horsepower: 150hp
Overall Width: 2650mm
Overall Height: 1500mm
Overall Length: 5900mm
Standard Cutting Width: 2650mm (8.6ft)
Machine Weight: 3500kg
Tyres: 550/60-22.5
Hydro Banks Required: 3 sets
Rams: 3
Hitch Style: Linkage Arm

M500

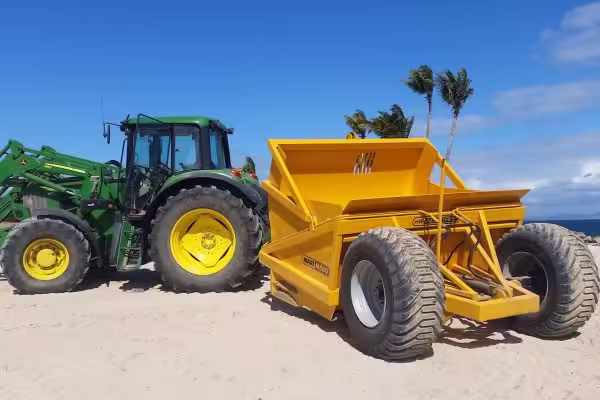

The M500 Model

With a load capacity of 5m3, the M500 allows faster and speedier land management. It also has a wider cut, measuring 2.4m, giving it the ability to pick up soil faster and more effectively.

Model: M500
Capacity: 5m³
Recommended Horsepower: 125hp
Overall Width: 2400mm
Overall Height: 1400mm
Overall Length: 5400mm
Standard Cutting Width: 2400mm (7.8ft)
Machine Weight: 2500kg
Tyres: 400/60-15.5
Hydro Banks Required: 3 sets
Rams: 3
Hitch Style: Linkage Arm

M400

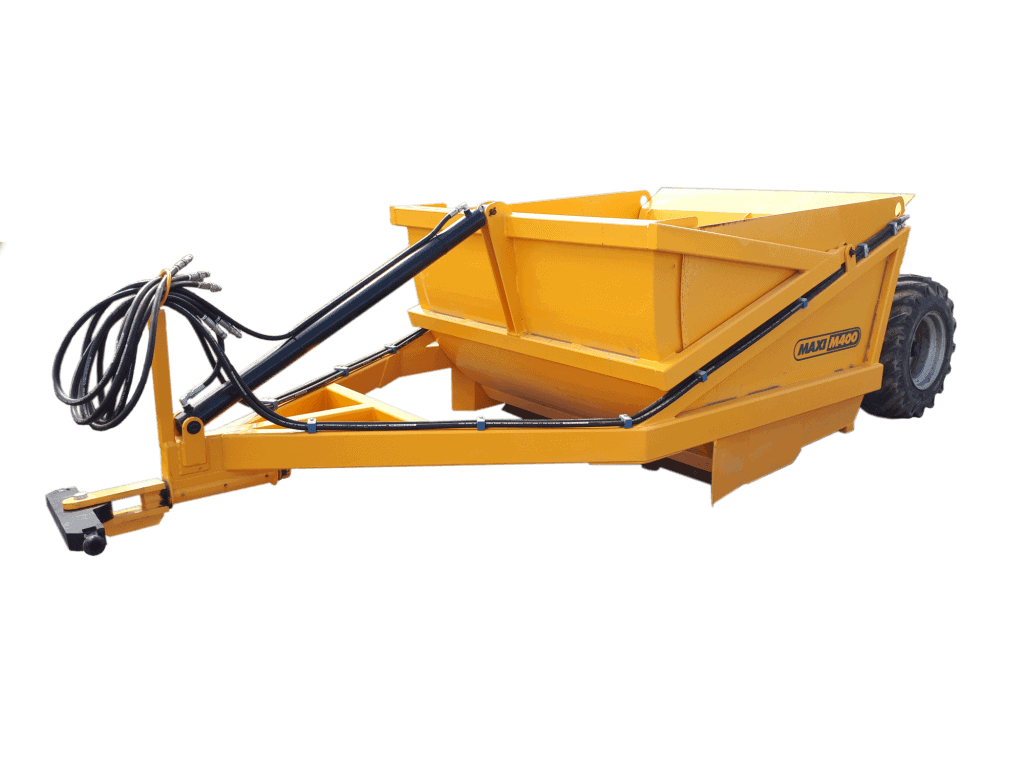

The M400 Model

The M400 scraper has a 4m3 load capacity and teams up well with a 100hp tractor. This tractor scraper combo makes it ideal for larger tasks such as commercial site preparation and land clearing. It is also ideal for commercial agriculture use. With a double acting hydraulic ram on both the apron and tailgate, the M400 undertake accurate control of cut, load, cart, dump and spread.

Model: M400
Capacity: 4m³
Recommended Horsepower: 100hp
Overall Width: 2000mm
Overall Height: 1400mm
Overall Length: 5200mm
Standard Cutting Width: 2000mm (6.5ft)
Machine Weight: 2000kg
Tyres: 11.5/80-15.3
Hydro Banks Required: 3 sets
Rams: 3
Hitch Style: Linkage Arm

M300

The M300 Model

The M300 Scraper has a generous load capacity of 3m3 with a hydraulic ram that gives it the ability to undertake a wide variety of tasks and tackle them with ease. Its wide 2m cut means it can fill up in less than 20 seconds of 15 metres. This scraper is perfect for small to medium scale land management tasks, including farm work and construction site preparation.

Model: M300
Capacity: 3m³
Recommended Horsepower: 80hp
Overall Width: 2000mm
Overall Height: 1100mm
Overall Length: 5200mm
Standard Cutting Width: 2000mm (6.5ft)
Machine Weight: 1800kg
Tyres: 11.5/80-15.3
Hydro Banks Required: 2-3 sets
Rams: 3
Hitch Style: Linkage Arm
