T Series planters are the ideal size for most farming applications. Our expert engineers have developed a robust and durable machine, designed for our unique Australian conditions while retaining classic Gason aesthetics. Compliment your T Series planter with a Gason Blue Series or Platinum Series air seeder for the complete broadacre tillage package.

T Series broadacre planters utilise our producer proven ScariTILL and HydraTILL tine assemblies. Controlled traffic applications provide excellent manoeuvrability while minimising crop damage, and our frame-mounted press wheels and parallelogram press wheels ensure consistent seed depth.

Features

  • Compliant transport dimensions
  • 400/540lb spring tines or hydraulic tines
  • High flotation wheels mounted in-frame on 3m wheel centres
  • Effective working width of 12m & 10m

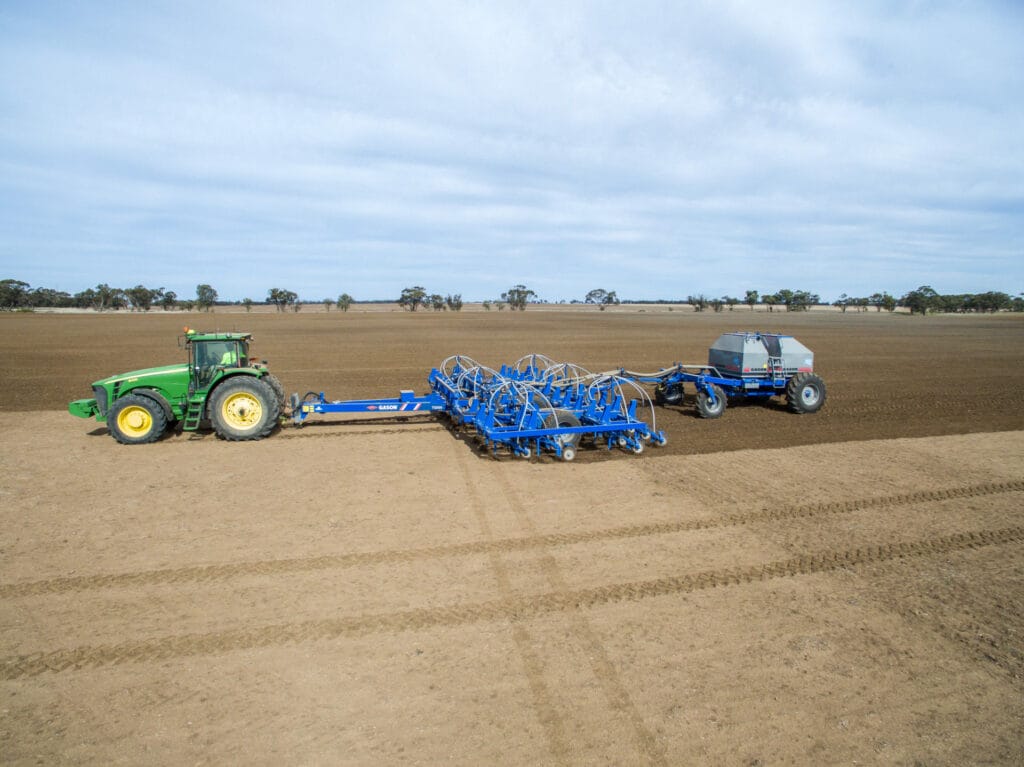

  • Coupled perfectly with Gason range of Air Seeders

Configurations

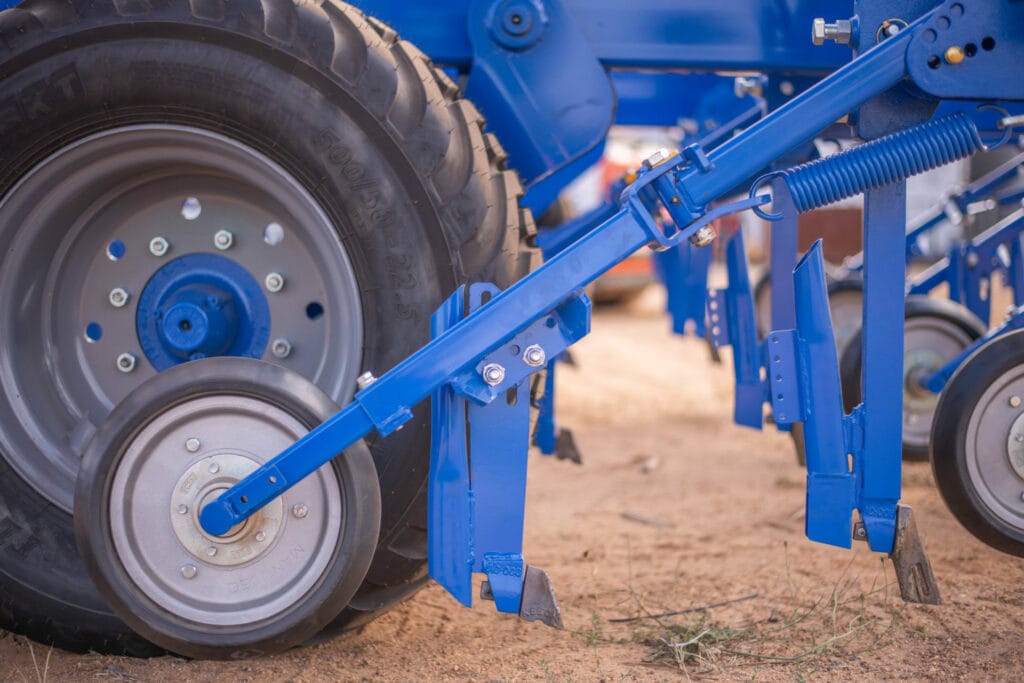

  • ScariTILL spring tine assembly – can be fitted with frame mounted presswheel
  • HydraTILL hydraulic tine assembly – can be fitted with parallelogram presswheel
  • Tine spacing options – 200mm (8′), 250mm (10′), 300mm (12′)

Options

  • Rear Tow Hitch
  • Seeder Mount (for Black Series air seeder)
  • Ground Engaging Tools
  • Presswheel Mud Scrapers
  • 2PL Hitch Leveller
  • Hydraulic Hitch Leveller
  • Throttle Check Valve (for HydraTILL)
  • Depth Sensor Kit (for STD monitor)
  • Second Accumulator Kit

Specifications

Working Width Road Transport Width Road Transport Height Road Clearance Approximate Weight Max Working Depth
T12000 12m 6.5m 4m 250mm 9,000kg 150mm
T10000 10m 6.5m 5m 250mm 9,000kg 150mm
