Precision Planter PP1000V Series

Agricultural Machinery
KUBOTA
Precision Planters

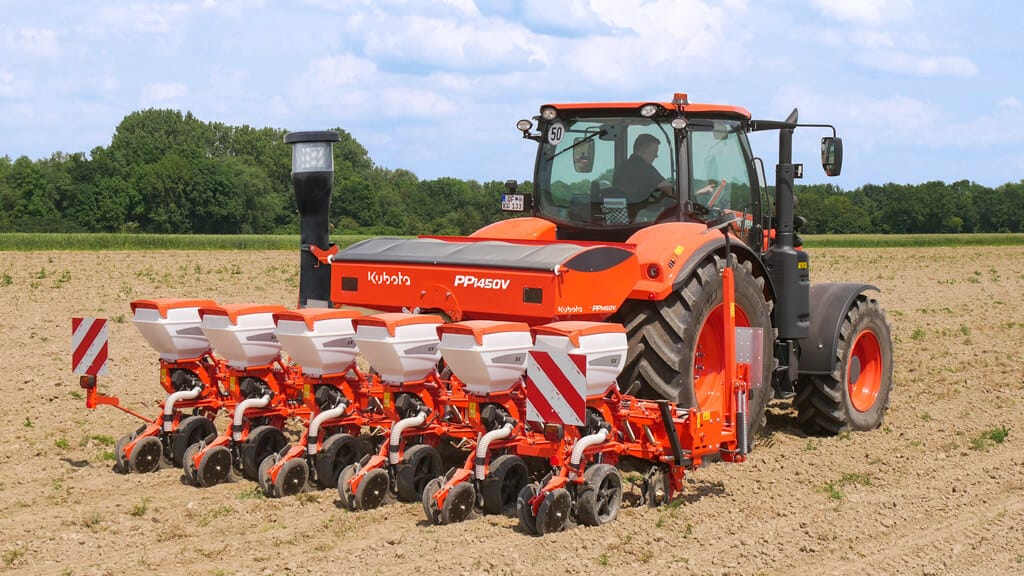

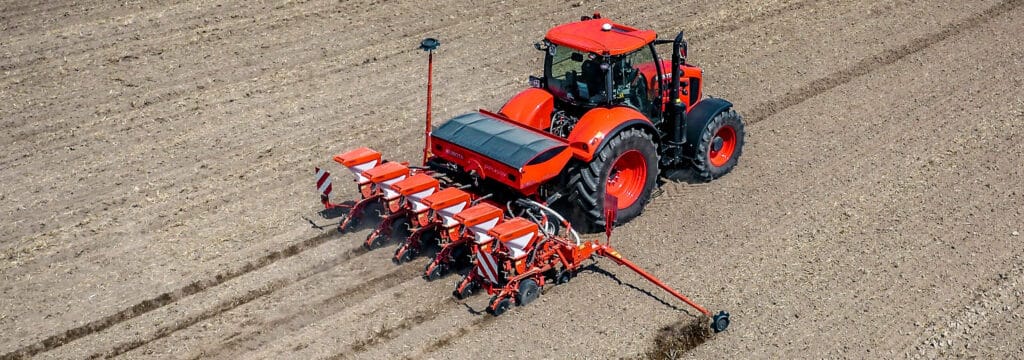

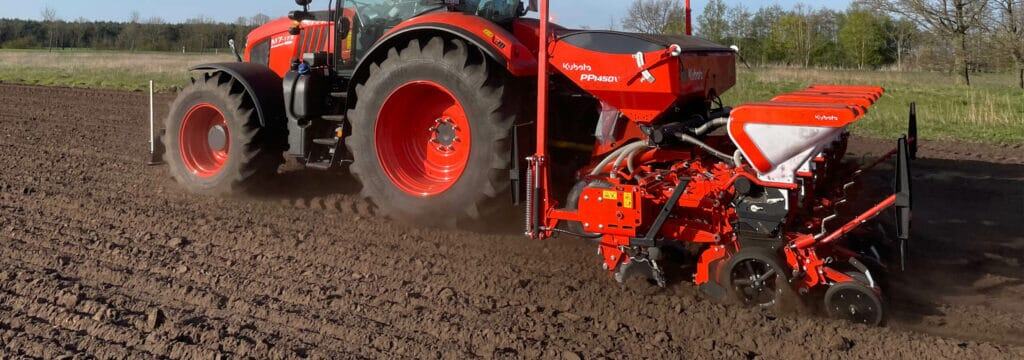

Kubota’s PP1000V Series of precision planters are the perfect drill for busy farmers and contractors who need a machine with variable row widths and maximum flexibility. With the PP1000V, the crop row width is configured in no time, for efficient response to changing needs. The PP1000V can be equipped with a 1000 L fertiliser hopper or front hopper solution, and a microgranular applicator is also available.

Product Features

The PP1001V Series has a variable frame width of 3 m to 4.8m and a convenient and safe transport width of just under 3 m. The sturdy headstock is made of round tubes, which saves weight and increases stiffness. The main telescopic frame is a 160 mm square tube, in which tough plastic glide parts guarantee long-term performance. All inner rows are mounted on 8 maintenance-free plastic rollers and are adjustable in different step widths. Both models in the series are electrically driven and compatible with GEOSEED.

High Speed Sowing

The HD-II sowing row on the PP1450V-HD is a heavy-duty unit with a traditional vacuum system to suck seeds to the seed disc. The air stream is then interrupted to allow the seed to fall to the furrow via gravity, allowing sowing at up to 9 km/h. The SX sowing row on the PP1450V-SX has a pressurised seeding heart blowing seeds to the disc. The seed is then released from the disc and shot down the seed tube at 70 km/h with precise seed placement at up to 18 km/h.

ISOBUS Control

Kubota is heavily involved in the development of electronic solutions for agricultural tractors and machinery, to make farming easier and future-proof. Our entire range of precision planters can be optioned with full ISOBUS control, and ISOBUS is standard on these models.

Precise Fertiliser

A 350 mm diameter notched double-disc coulter can provide blockage-free and precise fertiliser placement. Application of fertiliser can be either combined and fitted to the machine or done via a front-mounted hopper.

Electric Drive

With the e-Drive II ISOBUS option, each sowing unit is driven individually via an electric motor. Data is captured and read via an ISOBUS universal terminal like the Tellus Go+ or Tellus PRO. Sowing distances are infinitely adjustable, even on the go, and units can be switched off individually.

GEOSEED and SEEDER Control

GEOSEED is the next chapter in precision seeding and increases row crop yields significantly. The central idea is that seeds are placed perfectly in line and perfectly in relation to each other over the full working width and ultimately the entire field, for optimal nutrient uptake. This is particularly important when wanting to do inter-row cultivating for mechanical weeding after the seed has germinated.
