Coulterbar CB2000F Series

Agricultural Machinery
CB2500F / CB2600F

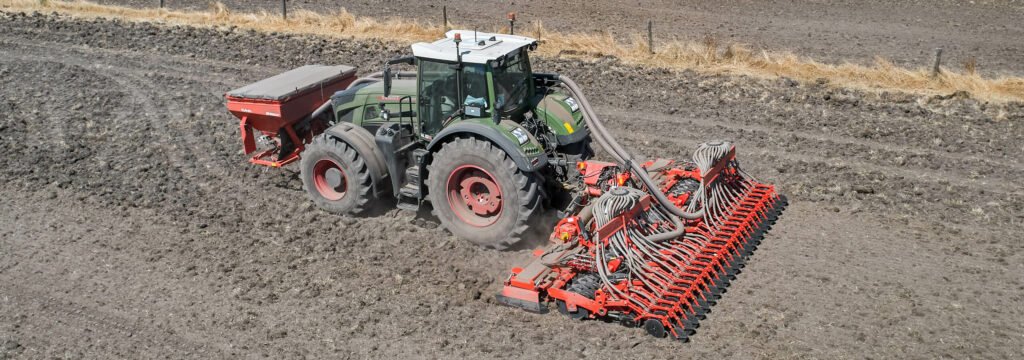

The modular structure of the Kubota CB2000F Series Coulterbar Seed Drill ensures even weight distribution across the set-up, and efficient operation thanks to the quick coupling system. The CB2000F drill also works in seamless combination with the SH1650 Series Front Hopper, for maximum tractor balance.

Versatile Size

With working widths of either 5 m or 6 m and a transport width of just 3 m, the CB2000F Series coulterbar is productive in the field and nimble on the road.

Precise CX-II Discs

Our CX-II discs have a shallow cutting angle and require less pressure to reach a constant seeding depth. The set-up incorporates a 325 mm steel disc paired with a 250 mm flex pressing wheel, for optimal coulter-to-soil contact. Meanwhile, the heavy-duty cast iron coulter arms on the SD2001MP are set for 125 mm spacing and provide up to 35 kg of downward pressure. Maintenance-free bearings with no greasing points mean trouble-free operation. Rigid, flexible or lifted positions ensure smooth running in wet or dry conditions.

Rapid Coupling

The CB2000F Series comes standard with Kubota’s simple rapid coupling system, for fast removal of the coulterbar from the power harrow when required. The electronic and hydraulic interface is easy to access. This linkage arrangement for the coulterbar and power harrow ensures constant seeding depth in all conditions.

Handy Controls

If used with the Kubota SH1650C Series Front Hopper, all hydraulic functions on the power harrow and coulterbar are coordinated at the power harrow’s headstock. The simple control panel allows the operator to control 5 functions from the cab using one double-acting tractor remote.

Big Hopper

The Kubota SH1650C has front twin hoppers feeding two metering devices driven via a land wheel or through standard ISOBUS controls. The hydraulic fan drive is standard, and the SH1650C holds up to 2200 L of seed or fertiliser, fed to left and right distributor heads.
