900T PULL-TYPE

Agricultural Machinery

Supreme International

FEED MIXERS

Listing Description

The 900T Pull-Type has a maximum payload of 24,000 lbs (10,886 kg), struck capacity of 731 ft³ (20.7 m³) or 841 ft³ (23.8 m³) with tub extension, and requires 130 horse power (97 kW).

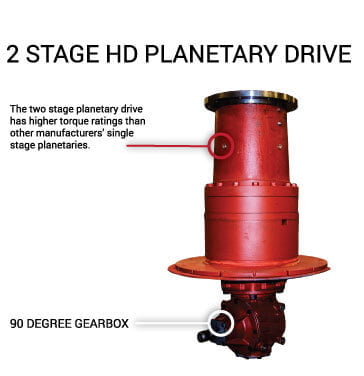

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or countershafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 900T is also available as a truck mount and a stationary mixer.

Minimum Power Requirements: 130 hp / 97 kW

Unit Capacity: Struck Capacity: 731 ft³ / 20.7 m³, Capacity with Extension: 841 ft³ / 23.8 m³

Tires: (4) 11R/22.5in 16 Ply Truck Tires With Budd Wheels & HD Axle

Empty Weight: 16,259 lbs / 7,375 kg

Max Payload: 24,000 lbs / 10,886 kg

Dimensions: Height: 117″ / 297 cm, Height w/ 10″ Extension: 127″ / 323 cm, Overall Width: 123″ / 312 cm, Overall Length : 273″ / 693 cm

Drive / rpm PTO: (2) Heavy-Duty, Two-Stage Planetary Drives / 540 or 1000 rpm PTO

Standard Discharge Ground Clearance: Flat: 30″ / 76 cm, Dogleg: 44″ / 112 cm, Ext. Dogleg: 55″ / 140 cm, 42″ Folding: 53″ / 135 cm, 54″ Folding: 60″ / 152 cm

Number of Knives : (10) Replaceable Forage Cutting Blades

Conveyor: Front Center Door With 10’ Flat Conveyor

Floor Thickness: 3/4” / 19 mm M/S Floor

Wall Thickness: 1/4” / 6 mm AR200 Walls

Standards Specifications: SS Auger Outer Edge, Two Patented Freestanding Vertical Cutting Augers, Manual Restrictor Plates, Heavy-Duty Tubular Steel Frame, 5/8” / 16 mm AR200 Auger Flighting, Ultra Wear Kicker Plates, Removable Heavy Duty Hitch Jack, 4 pt Scale System, 12 Volt Battery, Independent Steel Oil Reservoirs, SS Conveyor Top Pan
