600T PULL-TYPE

Agricultural Machinery
Supreme International
FEED MIXERS

The 600T Pull-Type has a maximum payload of 14,000 lbs (6,350 kg), struck capacity of 543 ft³ (15.4 m³) or 635 ft³ (18.0 m³) with tub extension, and requires 100 horse power (75 kW).

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or countershafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 600T is also available as a truck mount and a stationary mixer.

Minimum Power Requirements: 100 hp / 75 kW
Unit Capacity: Struck Capacity: 543 ft³ / 15.4 m³, Capacity with Extension: 635 ft³ / 18.0 m³
Tires: 385×65-22.5 Tires
Empty Weight: 12,730 lbs / 5,774 kg
Max Payload: 14,000 lbs / 6,350 kg

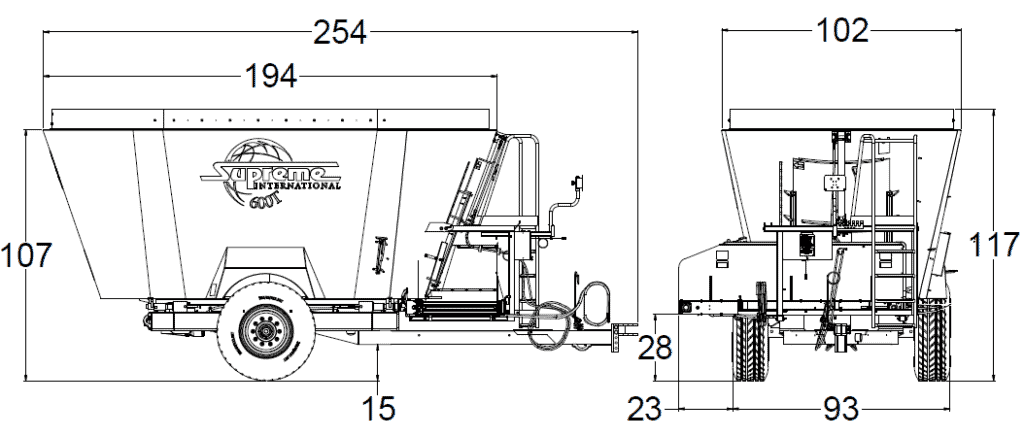

Dimensions: Height: 107″ / 272 cm, Height w/ 10″ Extension: 117″ / 297 cm, Overall Width: 102″ / 259 cm, Overall Length : 254″ / 645 cm
Drive / rpm PTO: (2) Heavy-Duty, Two-Stage Planetary Drives / 540 or 1000 rpm PTO
Standard Discharge Ground Clearance: Flat: 28″ / 71 cm, Dogleg: 41″ / 104 cm, Ext. Dogleg: 52″ / 132 cm, 42″ Folding: 43″ / 109 cm, 54″ Folding: 48″ / 122 cm
Number of Knives : 10 Replaceable Forage Cutting Blades
Conveyor: Front Center Door With 8’ Flat Conveyor
Floor Thickness: 3/4” (19 mm) M/S Floor
Wall Thickness: 1/4” (6 mm) AR200 Walls
Standards Specifications: Patented Freestanding Vertical Mixing Auger, Manual Restrictor Plates, Heavy-Duty Tubular Steel Frame, 5/8” / 16 mm AR200 Auger Flighting, 4 pt Scale System, 12 Volt Battery, Ultra Wear Kickerplate, SS Conveyor Top Pan, Independent Steel Oil Reservoirs, Viewing Platform
