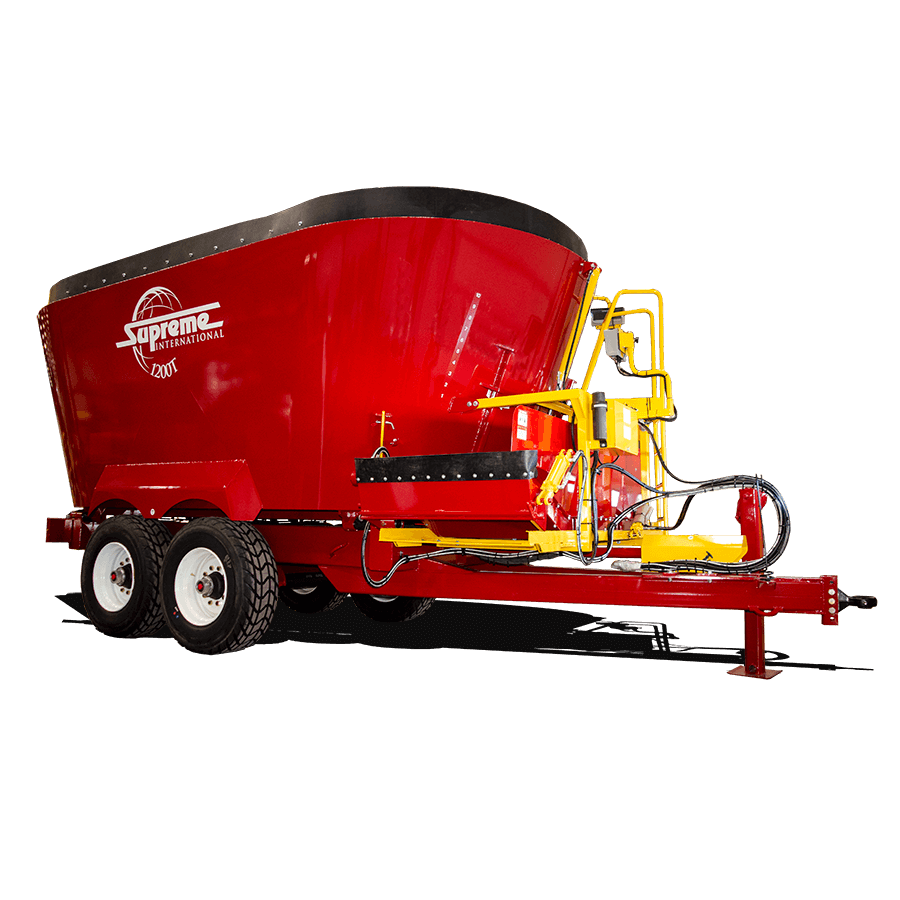

1200T PULL-TYPE TANDEM AXLE

Agricultural Machinery
Supreme International
FEED MIXERS

The 1200T Pull-Type has a maximum payload of 40,000 lbs (18,144 kg), struck capacity of 935 ft³ (26.5 m³) or 1,075 ft³ (30.4 m³) with tub extension, and requires 180 horse power (134 kW).

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or counter-shafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 1200T is also available as a truck mount and a stationary mixer.

Minimum Power Requirements: 180 hp / 134 kW
Unit Capacity: Struck Capacity: 935 ft³ / 26.5 m³ Capacity with Extension: 1,075 ft³ / 30.4 m³
Tires: 275 / 70R 22.5 Truck Tires with Budd Wheels and HD Axle
Empty Weight: 23,049 lbs / 10,454 kg
Max Payload: 40,000 lbs / 18,144 kg
Dimensions: Height: 121″ / 307 cm Height w/ 10″ Extension: 131″ / 333 cm Overall Width: 121″ / 307 cm Overall Length : 319″ / 810 cm
Drive / rpm PTO: Two Heavy-Duty, Two-Stage Planetary Drives / 540 or 1000 rpm PTO
Standard Discharge Ground Clearance: Flat: 37″ / 94 cm Dogleg: 50″ / 127 cm Ext. Dogleg: 62″ / 157 cm 42″ Folding: 60″ / 152 cm 54″ Folding: 67″ / 170 cm Side Door Fixed Chute; 28″ / 71 cm
Number of Knives : 10 Replaceable Forage Cutting Blades
Conveyor: Front Center Door With 10’ Flat Conveyor
Floor Thickness: 1” (25 mm) M/S Floor
Wall Thickness: 1/4” (6 mm) AR200 Walls
Standards Specifications: Tandem Axle Two Patented Freestanding Vertical Mixing Auger Manual Restrictor Plates Heavy-Duty Tubular Steel Frame 5/8” / 16 mm AR200 Auger Flighting Ultra Wear Kicker Plates Removable Heavy Duty Hitch Jack 4pt Scale System 12 Volt Battery SS Conveyor Top Pan Independent Steel Oil Reservoirs Viewing Platform
