1000T PULL-TYPE TANDEM AXLE
Agricultural Machinery
Supreme International
FEED MIXERS
Listing Description
The 1000T Pull-Type has a maximum payload of 40,000 lbs (18,144 kg), struck capacity of 779 ft³ (22.1 m³) or 897 ft³ (25.4 m³) with tub extension, and requires 170 horse power (127 kW).
Easy loading height makes this mixer a favorite on many farms. For the producer where height can be a concern with a tandem axle to help handle uneven terrain.

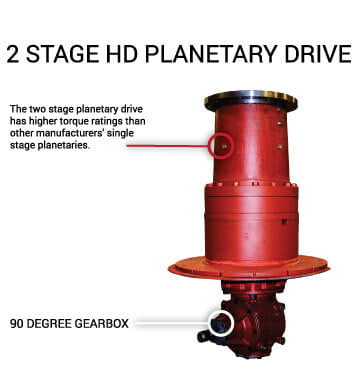

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or countershafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.
The 1000T is also available as a truck mount mixer and a stationary mixer.
Minimum Power Requirements: 170 hp / 127 kW
Unit Capacity: Struck Capacity: 779 ft³ / 22.1 m³, Capacity with Extension: 897 ft³ / 25.4 m³
Tires: 275/70R 22.5 Tires w/ Walking Beam
Empty Weight: 22,636 lbs / 10,268 kg
Max Payload: 40,000 lbs / 18,144 kg
Dimensions: Height: 114″ / 290 cm, Height w/ 10″ Extension: 124″ / 315 cm, Overall Width: 121″ / 307 cm, Overall Length: 317″ / 805 cm
Drive / rpm PTO: Two Heavy-Duty, Two-Stage Planetary Drives / 1000 rpm PTO
Standard Discharge Ground Clearance: Flat: 37″ / 94 cm, Dogleg: 50″ / 127 cm, Ext. Dogleg: 62″ / 157 cm, 42″ Folding: 60″ / 152 cm, 54″ Folding: 67″ / 170 cm
Number of Knives : 10 Replaceable Forage Cutting Blades
Conveyor: Front Center Door with 10’ Flat Conveyor
Floor Thickness: 1” (25 mm) M/S Floor
Wall Thickness: 1/4” (6 mm) AR200 Walls
Standards Specifications: Tandem Axle, Two Patented Freestanding Vertical Mixing Augers, Manual Restrictor Plates, Heavy-Duty Tubular Steel Frame, 5/8” / 16 mm AR200 Auger Flighting, Ultra Wear Kicker Plates, Removable Heavy Duty Hitch Jack, 4pt Scale System, 12 Volt Battery, Independent Steel Oil Reservoirs, SS Conveyor Top Pan
