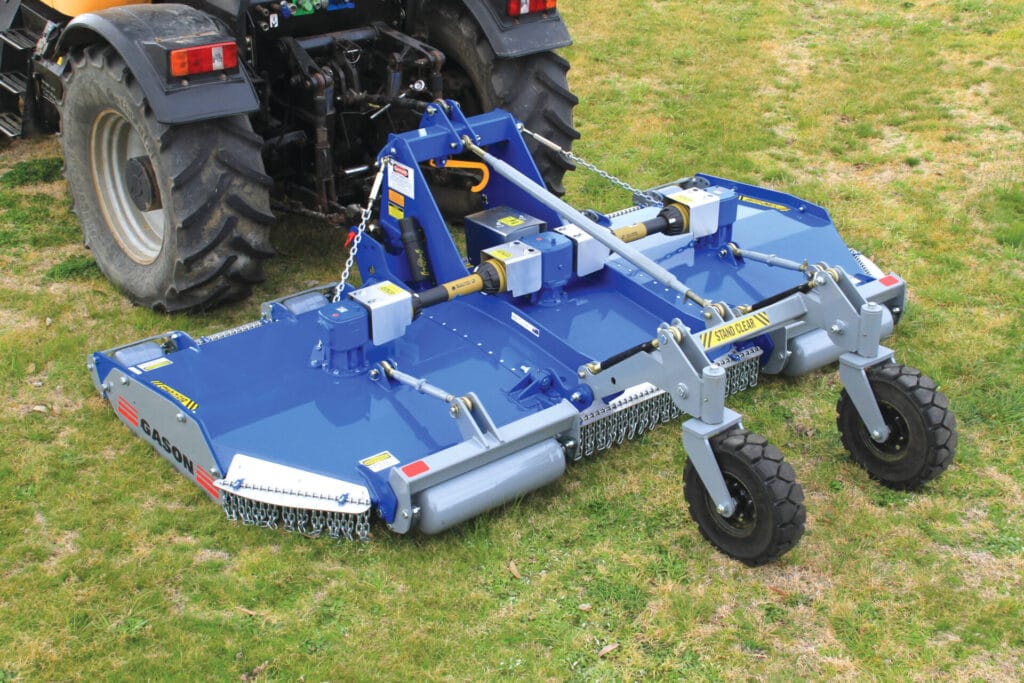

Wing Deck Triple Rotor Orchard Mower

Agricultural Machinery
Orchard Mowers
Vineyard Mowers

A long-time favourite of Australian and New Zealand orchardists since it was first introduced, the Winged Deck orchard mower is designed for one-pass mowing, with compact depth and generous cutting widths.

These winged models feature front and rear height adjustable domed end rollers and the ability for side discharge under tree or full side cover plates can be fitted for rear discharge and mulching of pruning’s (up to 50mm diameter). With a free-floating winged deck, this machine caters for contoured rows and can be operated with tractors from 70-90hp PTO.


Single Blade or Dual Blade


  • Two height adjustable domed end rear rollers
  • Two height adjustable domed end front rollers
  • Mulch throw both sides with discharge deflectors


  • Twin Rear Castor Wheels (STD on WD 12′ 6″)
  • Extra Front Rollers (for 11′ 6″ model)


Models GPN Rotor Configuration Cutting Width Approximate Weight
WD 9′ 6″ 224761 Triple Rotor 2.8m 1,200kg
WD 10′ 6″ 224762 Triple Rotor 3.1m 1,260kg
WD 11′ 6″ 226832 Triple Rotor 3.4m 1,340kg
WD 12′ 6″ (Premium) 224756 Triple Rotor 3.7m TBA
