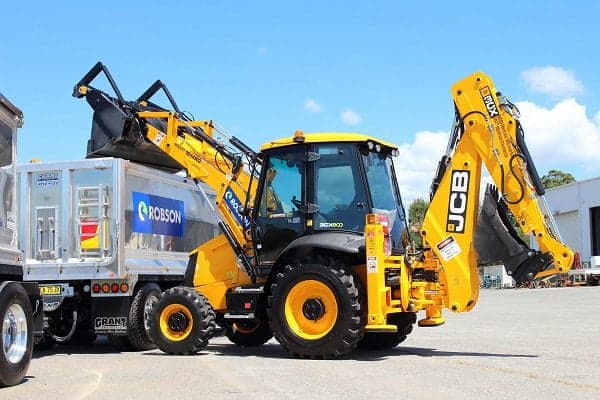

JCB 3CX BACKHOE LOADER
Industrial Equipment
JCB CONSTRUCTION & AGRICULTURAL EQUIPMENT
BACKHOE LOADERS
Listing Description
The world-renowned JCB 3CX BACKHOE LOADER is available for sale from the Bunbury Machinery BACKHOE LOADERS range.
The JCB Backhoe range is the world’s number one backhoe loader and it just got a whole lot better. JCB backhoes offer exceptional resale value based on market acceptance. Features include:
ROAD SPEEDS of up to 50km/h (Best in class).
NEW COMMAND CAB (PLUS & PRO)
EXCELLENT VISIBILITY (and safety) is provided by the extra-large tinted glass areas of 6.4m2.
NEW CONTROLS ERGONOMICS to optimise operator productivity and return on investment.
HYDRAULIC POWER SLIDE enables the excavator’s sideshift carriage to be hydraulically powered across the rear frame by the operation of a pedal or joystick-mounted proportional switch (EasyControl and Advanced EasyControl) in the cab.
EFFICENCT DESIGN PHILOSOPHY with class-leading efficiency and low running costs.
POWERFUL ECO MAX ENGINES from 68kw to 81kw.
- 3CX ECO 4.4L, 68kW – 4 Speed Powershift – Standard with 4 Cab integrated LED Beacons, LED Work lights, Blue Tooth Radio, Front fenders
- 3CX PLUS 4.8L, 81kW – 4 Speed Powershift with Torque Lock – Standard with 4 Cab integrated LED Beacons, LED Work lights, Blue Tooth Radio, Front fenders Rollover Forks
- 3CX PRO 4.8l, 81kW – 6 Speed Powershift with Torque Lock – Standard with 4 Cab integrated LED Beacons, LED Work lights, Blue Tooth Radio, Front fenders Rollover Forks
AVERAGE FUEL SAVINGS of up to 16%, plus lower emissions and noise levels.
EXTENDED PERIOD BETWEEN FILL UPS you benefit from a longer, more productive working day.
QUICK SPECS
Max Engine Power: 81kw (109hp)
Max Dig Depth: 5.46m
Bucket Capacity: 1.0m3 / 1.2m3
FEATURES
- Exclusive in-seat servo controls allowing the operator to work throughout 90 degrees for infinitely variable working positions
- Stage V engine PRO & PLUS (3CX ECO – Diesel Max)
- 25% more torque than outgoing models
- 9% fuel saving over outgoing models
- Torquelock for up to 25% fuel savings
- New Hydraulic Power slide for faster, easier backhoe repositioning
ENGINE
The JCB 3CX PLUS & PRO offers exclusively the EcoMax Stage V engine configuration that has been widely acclaimed for a dramatic reduction in greenhouse gas emissions and particulates. Also, we have empirical evidence from the JCB Live Link telemetry system that this model in many applications is averaging under 6 litres of fuel per hour which offers an extraordinary cost saving over the life of the machine that simple cannot be rivalled by any competitors. To prevent any movement from the Loader or backhoe the hydraulic controls are neutralised and cannot be activated with the engine started until the operator has acknowledge the functions.
The JCB 3CX Backhoe has a one-piece chassis from front to rear with a one-piece bonnet that makes daily servicing an easy task.
TRANSMISSION & DRIVELINE
The 3CX PLUS features a 4 speed Powershift now also with torque lock transmission with selectable 4wd. The 3CX PRO features class leading 6 speed auto Powershift transmission with torque lock for unrivalled road doing performance with high road speed capability. The 3CX Backhoe has a standard auto locking limited slip diff, which detects wheel slip without the requirement for operator engagement. Furthermore, in the event of a quick deviation being required when the axle is locked simply turning the steering wheel will automatically disengage diff lock.
HYDRAULICS
The Hydraulic system is a closed centre variable displacement pump with a max flow of 165lpm. The Auxiliary hydraulic lines are a standard factory fit for bidirectional and single directional flow. All of these can be activated from the left-hand joystick. The exclusive in seat pilot controls can be easily isolated by a 3-way switch with visual alerts indicating whether the hydraulic system is activated or isolated. To protect all the hydraulic lines JCB have run the lines internally on the boom and dipper to reduce damage (except the auxiliary lines).
EXCAVATOR
The JCB Backhoe has some fascinating backhoe features including a 5.46m dig depth, auto boom lock and factory engineered Hydraulic side shift actuation which JCB pioneered back in 1999. JCB’s Power slide Hydraulic Side Shift is a feature that is factory fitted. The hydraulic cylinder and ancillary plumbing are all placed behind the kingpost not above the slide rails. JCB are the only manufacturer that fit sacrificial wear pads between the kingpost and the slide rail for increasing the life of the slide rail.
LOADER
The JCB 3CX Backhoe has parallel lift and standard SRS Boom Suspension. The JCB Smooth Ride System (SRS) consists if a dry nitrogen and oil filled accumulator installed in line with the loader lift cylinders. When activated, the SRS allows the loaders arms to float. This action counteracts variations in road or site surfaces and provides the operator with a smoother and more comfortable ride. The JCB SRS is manually controlled, via a rocker switch on the instrument panel, for maximum benefit and user flexibility.
CAB
New 7” LCD Display Screen
The new 7″ colour display is standard and makes monitoring information simple and fast. The screen provides the operator with far greater information and increases functionality and gives relevant information in a quick and easy manner.
This display screen is controlled using a rotary switch which allows the display to be quickly toggled through the menus to access the following menus:
- Audio Controls
- Phone Controls
- Engine Temperature
- Warning Symbols
- Machine Hours
- Fuel Level and Data
- Media Status
- Help files (featuring manuals and videos within the display)
- Service Alerts
New Rotary Control Switch
- A tactile rotary controller provides precise
intuitive control for all the new 7” colour display.
The main functions of the side display can be
accessed in the push of a finger and can be
easily reached to the Operator’s right-hand side.
New Factory Installed Bluetooth Radio
- For the first time, a factory installed radio is available and will be standard on all models.
- The radio features Bluetooth telephone and music capability for hands free operation and
USB (Universal Serial Bus), AUX and SD card capability.
- Integrated to the front headliner above the Operator’s head, it is out of the way to damage
and still within easy reach, and for enhanced ease of use can also be controlled through the rotary encoder located on the side console, no matter which way the Operator’s seat is facing.
The new 3CX Auto introduces a wider range of advanced automation features designed to reduce operator fatigue through less manual operations and movement, increase productivity by cutting cycle times and improve fuel efficiency.
The in-cab air conditioning system on the 3CX Backhoe has excellent capabilities with velocity air flow through 14 individual vents. The cab offers great storage with a large box in cab and also storage behind the operator’s seat.
The 3CX PLUS & PRO has a fully adjustable heated cloth air suspension seat with lumbar support and 180-degree operation. With exclusive in seat service hydraulic controls unlike our competitors the JCB servo System turns with the seat offering full 180-degree operation of the backhoe. The 3CX features multifunction servo controls for both the loader & backhoe. To enable operators to feel right at home in the 3CX, we fit a traditional manual control system as standard with switchable ISO/SAE control patterns.
The JCB Backhoe can be optionally fitted with an Auto lock quick hitch with proximity sensor and two stage unlock process. Furthermore, the 3CX PLUS & PRO have excellent braking performance achieve with class leading hydraulically boosted brakes which offers car like pedal effort, this is also backed by an accumulator in the case of an engine failure offering full power assistance in this instance.
LIVELINK
The JCB 3CX Elite Backhoe comes with JCB Live Link GPS Monitoring System. Benefits include:
• Increased Uptime
• See when machines are due for a routine service on the Live Link website or register to receive alerts via email
• An electronic service history of your machine
• Optimised Fleet Management
• Know when your machine needs technical support by e-mail or via the website
• Know where your machine is and what it was doing
• Use the reporting tool with a range of comprehensive reports to review tour machine’s activity or performance history
• Greater Safety & Security
• Make your machine safer 24 hours a day through landmark alerts or movement alerts via text, e-mail or the website
• Tow away alerts
• No external antenna
• Internal battery
Bunbury Machinery is your premier Dealer of JCB Construction Equipment in Western Australia.
