S Series

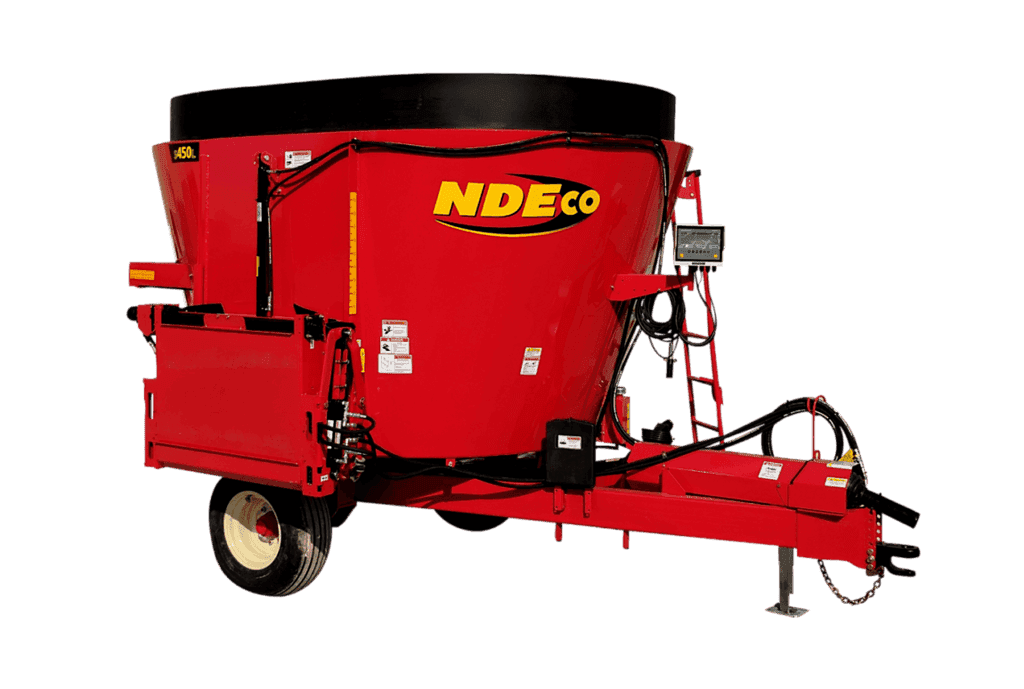

NDEco S Series Vertical TMR Feed Mixers

330 to 575 Cubic Feet Capacity

The S Series mixers are smaller economical feed mixers, yet highly configurable to suit your operation. It features a simple design with fewer moving parts. The A shaped frame allows for a tighter turning radius. Can be equipped with Tungsten Knives or either of our patented knives; the 24″ curved carbide insert knife or the serrated knife, giving you the ability to process large bales and long stem forages in this smaller mixer.

Side Door Discharge

Side Door Discharge,330 to 575 Cubic Feet Capacity,3′ to 9′ Side Door Conveyors,24″ curved Carbide & Serrated Knives,Single Axle or Walking Tandem,540 or 1000 RPM Multi-Stage Planetary Gearbox

Our auger is the key component for producing the most uniform and consistent ration throughout the mix from bottom to top. It features an aggressive design with full flighting on a continuous curve without uneven cutouts that create inconsistent feed drops. This continuous curve provides the best lift action and ensures that once feed material is picked up it moves up in a uniform and consistent manner, rolling material back into the mix evenly and not dropping material in batches that create an uneven ration throughout.

Not only does this create a more uniform ration, it also speeds up the processing time by working harder to ensure once feed is picked up it keeps moving with maximum efficiency. Being aggressive with the design focuses on the best possible mix at the fastest possible pace with the largest possible material load, directly converting the required horsepower into the result of the mix.

To match the aggressive auger design, each auger has the capacity of up to 9 large knives, including industry exclusive carbide options designed to aggressively slice through bales and roughage.

– Full Flighting: A one piece, 5/8″ thick continuous tapered flighting providing the best lift action ensuring a complete & consistent bottom to top mix of all feedstuffs.
– Multiple Knife Options:
– Tungsten: General all-purpose mixing knife
– 24″ Curved Carbide Knife: Industry exclusive carbide knife for processing bales and long stem forages and minimum wear.
– Serrated Carbide Knives: Most aggressive patented knife processes bales and roughage up to 30% faster, reducing wear.
– Scraper: Ensure you get a superior consistent mix with our adjustable and replaceable scraper.
– Reinforcement Plate: Add 1/2″ thick reinforcement plates to the underside of your knives.
– Hard Surfacing: Increase the longevity of the auger by applying hard surfacing to the auger.

– 540 or 1000 RPM Heavy Duty Multi-Stage planetary gearbox
– Resistance to overloading and dissipates heat effectively
– Built to handle all types of feed
– Each gearbox is rigorously tested inside our facility prior to installation to ensure it meets our reliability and quality standards.
– 5 Year Warranty

– Side Door Discharge: Unload quickly through the 43″ wide door opening. Choose between Right Side, Left Side or Double Side door opening.
– Chute: All S Series mixers come equipped with a discharge chute.
– Conveyor Options: Side Conveyors are offered in lengths of 3′, 4.5′, 6′, 7.5′ or 9′. (shown is a 4.5′ conveyor) Check the Specifications for conveyor reach dimensions.
– Options: The Chute and Conveyors can be equipped with feed slides (steel, rubber or magnet). A Rubber Wind Guard is available for the Conveyors.

All S and FS series mixers are available in a stationary configuration. Displayed unit is an S400 model with the following specifications:

– Planetary geared for a direct or belt drive
– 30hp 3 phase motor 1750rpm
– VFD with 3 operating speeds
