Precision Planter PP1001TF Series

Agricultural Machinery
KUBOTA
Precision Planters

Listing Description

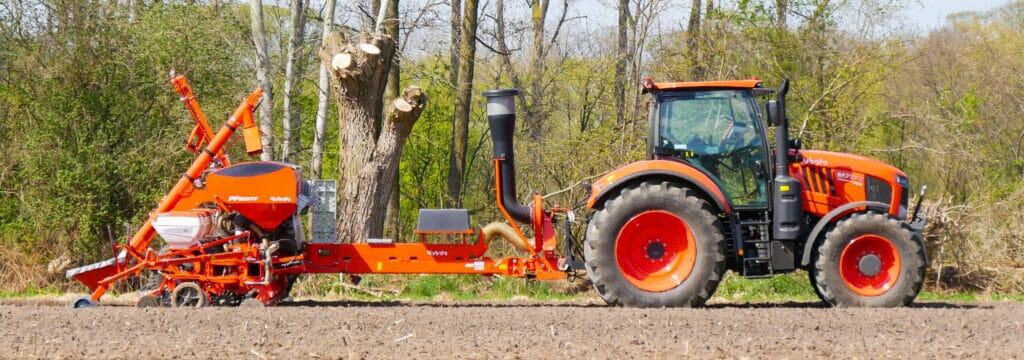

Kubota’s PP1001TF Series of trailing precision planters offer the perfect combination of high performance from low pulling force. The trailed, foldable frame for up to 8 rows is equipped with a big 2000 L fertiliser hopper, but the PP1001TF Series can be pulled by a 90 hp tractor with little hydraulic capacity and requires no lifting capacity.

Product Features

The PP1001TF Series has a frame width of 6 m and a convenient and safe transport width of just 3 m. The 2 models in the series come equipped with either an optional electro-hydraulic drive for fertiliser application, which allows the fertiliser rate to be adjusted even while working, or a direct fan drive via the PTO shaft.

High Seed Sowing

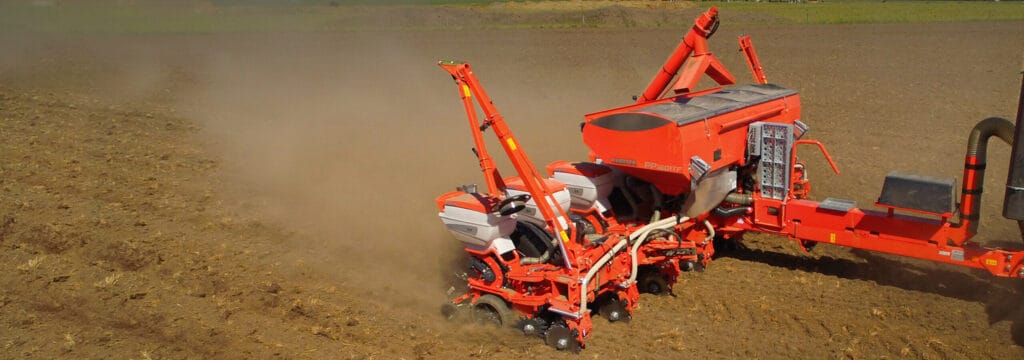

The HD-II sowing row on the PP1601TF-HD is a heavy-duty unit with a traditional vacuum system to suck seeds to the seed disc. The air stream is then interrupted to allow the seed to fall to the furrow via gravity, allowing sowing at up to 9 km/h. The SX sowing row on the PP1601TF-SX has a pressurised seeding heart blowing seeds to the disc. The seed is then released from the disc and shot down the seed tube at 70 km/h with precise seed placement at up to 18 km/h.

ISOBUS Control

Kubota is heavily involved in the development of electronic solutions for agricultural tractors and machinery, to make farming easier and future-proof. Our entire range of precision planters can be optioned with full ISOBUS control, and ISOBUS is standard on these models.

Precise Fertiliser

A 350 mm diameter notched double-disc coulter can provide blockage-free and precise fertiliser placement. Application of fertiliser can be either combined and fitted to the machine or done via a front-mounted hopper.

Electric Drive

With the e-Drive II ISOBUS option, each sowing unit is driven individually via an electric motor. Data is captured and read via an ISOBUS universal terminal like the Tellus Go+ or Tellus PRO. Sowing distances are infinitely adjustable, even on the go, and units can be switched off individually.



Attachments

Kubota PP Series Precision Planter Brochure
Kubota PP Series Precision Planter Brochure
